Fabricating Rock Sliders for Nissan Patrol: A Professional UAE Engineering Guide

A single 45-degree climb in the Hajar Mountains can cause over 4,200 AED in body damage to a Nissan Patrol if you're still relying on factory side steps. You've likely seen it happen during a weekend in Wadi Shawka. A heavy landing on a sharp rock ledge turns a standard bolt-on step into a crumpled piece of aluminum that actually crushes your door sill. We agree that your vehicle deserves better than generic accessories that fail the moment they're forced to support a 2.8-ton SUV. This guide explores the professional engineering behind fabricating rock sliders for Nissan Patrol chassis to ensure your Safari or Super Safari remains protected in the dunes.

You need armor that doesn't just look the part but functions as a structural component. We promise to show you the industrial fabrication techniques required to turn 5mm cold-rolled steel into a reliable hi-lift jack point. Auto Industries Factory (AIF) specializes in precision engineering, and you'll learn how CNC laser cutting and 100 percent chassis-specific mounting plates create a fitment that mass-produced parts can't match. We're providing a preview of the exact four-stage manufacturing process used at our UAE facility to deliver maximum side-impact protection for the toughest desert terrain.

Why Custom Rock Sliders are Essential for Nissan Patrols in the UAE

Rock sliders are heavy-duty steel rails designed to protect the Nissan Patrol's vulnerable sills and lower bodywork from catastrophic impact. Unlike decorative side steps, these are structural components. If you're looking for a technical overview of What are Rock Sliders, they act as a sacrificial barrier that slides over obstacles rather than catching on them. For off-roaders in the UAE, fabricating rock sliders for Nissan Patrol vehicles is a necessity because a single high-centering incident on a rocky ridge in Hatta can result in repair bills exceeding AED 12,500.

To better understand this concept, watch this helpful video:

The fabrication process varies significantly between the Y61 and Y62 generations. The Y61 Safari relies on a traditional ladder-frame chassis where outriggers can be welded or bolted directly to the main rails. The Y62 requires more complex geometric considerations because of its wider body and specific suspension clearance needs. Beyond protection, these sliders provide a reinforced point for a Hi-Lift jack. In the 300-meter dunes of the Liwa desert, having a secure point to lift a 2.8-ton vehicle for recovery is the difference between a quick fix and a multi-hour ordeal.

Vulnerabilities of the Nissan Patrol Chassis

Standard factory side steps are typically made of lightweight aluminum or plastic. They're designed for ingress, not impact. Under a vertical load of just 450kg, these brackets often buckle. When we focus on fabricating rock sliders for Nissan Patrol, we ensure impact forces are distributed across the 4mm thick steel of the ladder-frame chassis. This prevents energy from transferring into the body mounts. If these mounts fail during aggressive maneuvers, it leads to permanent frame-to-body misalignment and door jams.

UAE Off-Roading Conditions and Protection Needs

Wadi bashing in the Northern Emirates involves sharp igneous rocks that can puncture a standard rocker panel in seconds. Conversely, dune crossing requires high-clearance "tucked" designs that don't sacrifice the 31-degree break-over angle. Coastal driving in Dubai and Sharjah adds the risk of salt-air corrosion. We address this by using grit-blasting and specialized powder-coating that withstands 85% humidity levels. Every millimeter of clearance counts when you're navigating the technical terrain of the Emirates.

Engineering the Perfect Fit: Material Selection and CAD Design

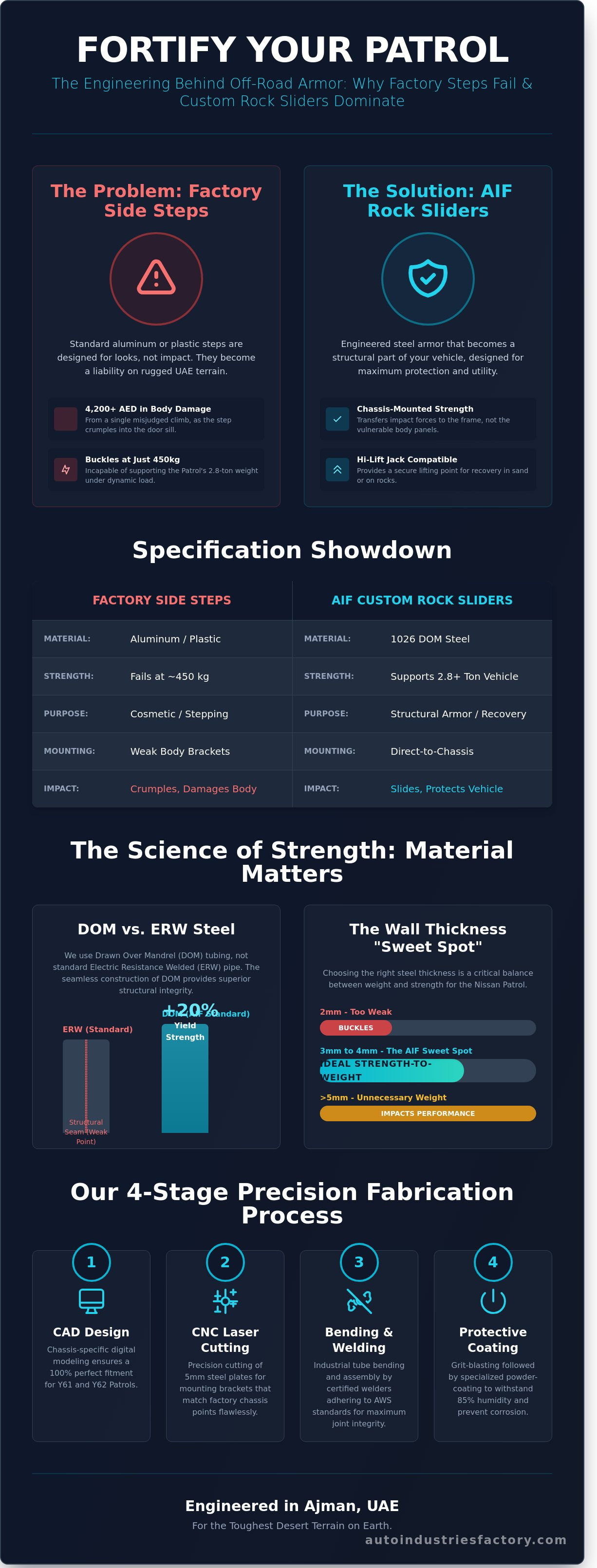

Engineering a set of sliders isn't just about welding metal; it's a calculated exercise in physics. When fabricating rock sliders for Nissan Patrol vehicles, Auto Industries Factory (AIF) engineers prioritize high-tensile DOM (Drawn Over Mandrel) tubing over standard ERW (Electric Resistance Welded) pipe. While mild steel is cost-effective, DOM offers a 20% higher yield strength. This ensures the slider absorbs the energy of a 2.8-ton Y62 dropping onto a jagged rock without permanent deformation. We focus on a strength-to-weight ratio that protects the chassis without turning the vehicle into a sluggish heavy-weight.

Steel Grades and Durability Standards

AIF utilizes 1026 DOM steel for heavy-duty applications. Unlike ERW, which has a structural seam that can split under high-pressure impacts, DOM is seamless and undergoes cold-working for a uniform grain structure. We stick to a 3mm to 4mm wall thickness. Using 2mm steel is a common industry mistake; it buckles under the Patrol's weight. Conversely, exceeding 5mm adds unnecessary mass that negatively impacts the vehicle’s center of gravity. Adhering to Precision Welding Standards during the assembly of these Hollow Structural Sections (HHS) ensures every joint maintains its integrity under extreme stress. This level of detail is why our fabrications survive the harshest UAE terrains.

Precision Design for Nissan Patrol Geometry

The Y62 Patrol features complex body lines and sensitive components that demand millimetric precision. Our design process often starts with 3D scanning to map fuel lines and body mounts with 0.5mm accuracy. This prevents the sliders from interfering with the vehicle's natural frame flex. We incorporate "kick-outs" at the rear of the slider. These angled sections push the vehicle's side away from obstacles during tight turns in the Hatta mountains or Liwa dunes. Every design also includes laser-cut drainage ports. Without these, trapped UAE sand and moisture lead to internal corrosion within 12 months. If you're planning a build, our custom fabrication services provide the precision needed for a perfect bolt-on fit.

Auto Industries Factory (AIF) specializes in fabricating rock sliders for Nissan Patrol owners who demand more than just aesthetic side steps. We ensure the mounting plates distribute the load across the strongest points of the chassis. This prevents the frame from twisting during a recovery or a high-centered situation. By combining CAD software with hands-on mechanical expertise, we create a product that enhances off-road capability while maintaining the Patrol's legendary road manners.

The Fabrication Process: From CNC Laser Cutting to Precision Welding

Fabricating rock sliders for Nissan Patrol requires a five-step engineering workflow to ensure the final product survives the Liwa Dunes or Hatta's rocky wadis. We start with precision CNC laser cutting for all mounting plates and gussets. This technology maintains a tolerance of 0.1mm, ensuring a bolt-on fit that aligns perfectly with the Patrol's existing chassis holes. Manual grinding can't match this level of accuracy or repeatability.

The main rails use 50mm heavy-wall cold-drawn seamless (CDS) tubing. We utilize industrial hydraulic tube benders to follow the Patrol's specific body lines. This prevents kinking or thinning of the tube walls. Structural integrity depends on welding high-strength steel using professional TIG or MIG processes. Our technicians prioritize deep penetration at every joint to prevent failure under 3.5-ton recovery loads.

• Step 1: CNC cutting of 8mm steel mounting plates for exact chassis alignment.
• Step 2: Precision bending to achieve a 15-degree kick-out profile.
• Step 3: Multi-pass welding for maximum joint strength and structural rigidity.
• Step 4: Sandblasting to Sa 2.5 standards followed by heavy-duty powder coating.
• Step 5: Final installation using Grade 10.9 high-tensile hardware.

Advanced Manufacturing Techniques at AIF

Auto Industries Factory (AIF) specializes in high-load fabrication where manual methods fall short. We use 6mm gussets to reinforce every 90-degree joint. These triangular supports distribute impact forces across a wider surface area of the chassis. Before any coating is applied, we conduct dye penetrant testing on critical welds. This 100% inspection rate ensures no micro-cracks exist that could compromise safety during a high-impact off-road event. You can learn more about our engineering standards on our services page.

Finishing for the UAE Climate

Standard spray paint fails when surface temperatures hit 70°C in the summer sun. When fabricating rock sliders for Nissan Patrol, we apply an industrial-grade, UV-stable powder coating that resists chipping from flying gravel. For the top surface, we incorporate a 40-grit anti-slip texture. This provides a secure step for passengers even when boots are covered in fine sand or mud. Owners of Nissan Patrol Safari editions can also choose custom color matching to align with their factory trim or body paint.

Custom Fabricated vs. Bolt-On Sliders: Evaluating Strength and Protection

Choosing between off-the-shelf kits and custom engineering is the difference between a cosmetic accessory and a structural safety component. Most mass-produced sliders for the Nissan Patrol Y62 prioritize ease of shipping over actual protection. These standard kits often use thin-gauge steel that buckles under the 2,800kg curb weight of a Patrol. When fabricating rock sliders for Nissan Patrol vehicles at our Ajman facility, we focus on direct energy transfer to the frame rather than the fragile body panels. It's a specialized approach that ensures the slider doesn't just look rugged but performs under extreme pressure.

The Strength of Chassis Mounting

AIF engineers custom brackets that wrap entirely around the vehicle's frame. We avoid drilling into the chassis to maintain its structural integrity; instead, we use high-strength clamping systems or existing factory holes. This setup passes the ultimate 'rock slider test.' You can use a Hi-Lift jack on any point of the slider to lift the entire side of the vehicle without the metal flexing. This 100% rigidity is impossible with body-mounted kits. Those retail versions often result in crushed sills during a heavy landing because the mounting points simply aren't designed for high-impact loads.

• Load Distribution: Custom outriggers use gusseted joints to prevent the slider from rotating upward into the door.
• Material Thickness: We utilize 5mm to 8mm wall thickness, which is significantly higher than the 3mm standard found in mass-produced kits.
• Precision Fit: Every bracket is laser-cut to the exact millimeter of the Y62 chassis profile for a flawless fit.

Long-Term Reliability and Maintenance

Custom steel sliders offer superior repairability. If you take a massive hit on a jagged rock in Wadi Shawka, a steel slider can be heated, straightened, or re-welded by a professional. Aluminum or cheap alloy bolt-ons usually crack and require total replacement. We also eliminate the 'rust trap' effect common in low-end products. Cheap tubes are often poorly sealed, allowing salt and sand to collect inside. Our fabrication process involves fully sealed welds and a multi-stage powder coat to ensure the UAE's coastal humidity doesn't compromise the metal. You can explore our services to see how we integrate these durability standards into every build.

Investing in custom work is a smart financial decision. A single impact that bypasses a weak slider can cause over AED 15,000 in damage to doors and quarter panels. Professional fabricating rock sliders for Nissan Patrol provides a permanent shield that outlasts the vehicle itself. It's an engineering solution for drivers who don't want to compromise on safety.

Professional Fabrication Services at Auto Industries Factory

Engineer Your Nissan Patrol for Ultimate Terrain Protection

Protecting your vehicle's chassis from the jagged terrain of the UAE requires more than a generic off-the-shelf accessory. Professional engineering ensures your 4x4 withstands the 100% impact force of a rock strike without structural failure or frame damage. At Auto Industries Factory, we specialize in fabricating rock sliders for Nissan Patrol owners who demand safari-grade durability. Our team utilizes in-house CNC Laser and CNC Machining technology to eliminate the 15% fitment gaps often found in mass-produced bolt-on kits. We apply the same heavy-duty standards used in our specialized military conversions to every custom build we deliver.

Based in Jurf Industrial Area 1, Ajman, our facility serves as a technical hub for precision 4x4 modifications. You don't have to worry about compromised ground clearance or weak mounting points when our master craftsmen handle the welding. By choosing a custom-fabricated solution, you're investing in a 10/10 protection rating that generic brands simply can't match. It's time to upgrade your fleet and maximize your uptime on the dunes with confidence. Our experts are ready to transform your vehicle into a rugged powerhouse built for the harshest environments.

Get a Free Estimate for Custom Nissan Patrol Rock Sliders

Your next desert adventure deserves the peace of mind that only professional UAE engineering can provide.

Frequently Asked Questions

Is it better to weld or bolt rock sliders to a Nissan Patrol chassis?

Bolting is the superior choice for most owners because it preserves the integrity of the chassis finish and allows for easier maintenance. High-tensile 8.8 grade bolts ensure the sliders stay secure during 100% of off-road impacts. Welding creates a permanent bond; however, it's much harder to repair or repaint if you dent a rail during a desert excursion.

How much does a custom set of rock sliders for a Nissan Patrol cost in the UAE?

The cost for fabricating rock sliders for Nissan Patrol in the UAE typically ranges from AED 2,500 to AED 4,500. This price reflects the use of 4mm cold-rolled steel and professional sandblasting. Prices can fluctuate by 15% based on specific design complexities, integrated tread plates, or custom powder-coating colors requested by the client.

Will installing custom rock sliders affect my Nissan Patrol's warranty?

Installing sliders won't void your entire 3-year or 100,000km warranty, but it may affect claims specifically related to the chassis frame. UAE dealerships often overlook bolt-on accessories during routine 10,000km services. It's best to confirm with your service advisor to ensure your specific 5-year extended coverage remains valid before you begin the installation.

What is the best material for rock sliders: steel or aluminum?

Steel is the best material because it handles the 2.8-ton curb weight of a Patrol without bending or cracking. While aluminum is 30% lighter, it lacks the tensile strength needed for the sharp wadi rocks found in Sharjah or Hatta. We use 48mm diameter steel tubing to provide maximum protection for the vehicle's sills and door bottoms.

How long does the fabrication and installation process take at AIF?

Auto Industries Factory (AIF) completes the process in 3 to 5 working days at our Ajman workshop. This schedule includes 1 day for CAD design, 2 days for fabrication, and 48 hours for the professional powder-coating process. We ensure every unit meets our 100% quality check before we finalize the installation on your vehicle.

Can rock sliders be used as side steps for daily driving?

Rock sliders serve as excellent side steps for daily use in Dubai or Abu Dhabi. We can add a 50mm wide dimpled top plate to increase grip for your passengers during entry and exit. This modification provides a 100% slip-resistant surface during rainy days or after heavy desert drives when the vehicle is covered in sand.

Do I need to modify my suspension before adding heavy-duty rock sliders?

You don't need a suspension upgrade if the total weight of the sliders stays under 60kg for the pair. If your Patrol has a 2-inch lift kit already, the extra weight is negligible and won't affect performance. For stock vehicles, we monitor the 15mm sag that can occur when adding heavy-duty 4.5mm steel plates to ensure your alignment remains correct.

What is the difference between rock sliders and side bars?

Rock sliders are structural armor designed to slide over obstacles, while side bars are decorative accessories that offer zero impact protection. Sliders use 4mm thick steel and mount directly to the chassis frame for maximum rigidity. Side bars often use 1.5mm thin-walled stainless steel and will collapse under a 500kg load, potentially causing more damage to your bodywork.
